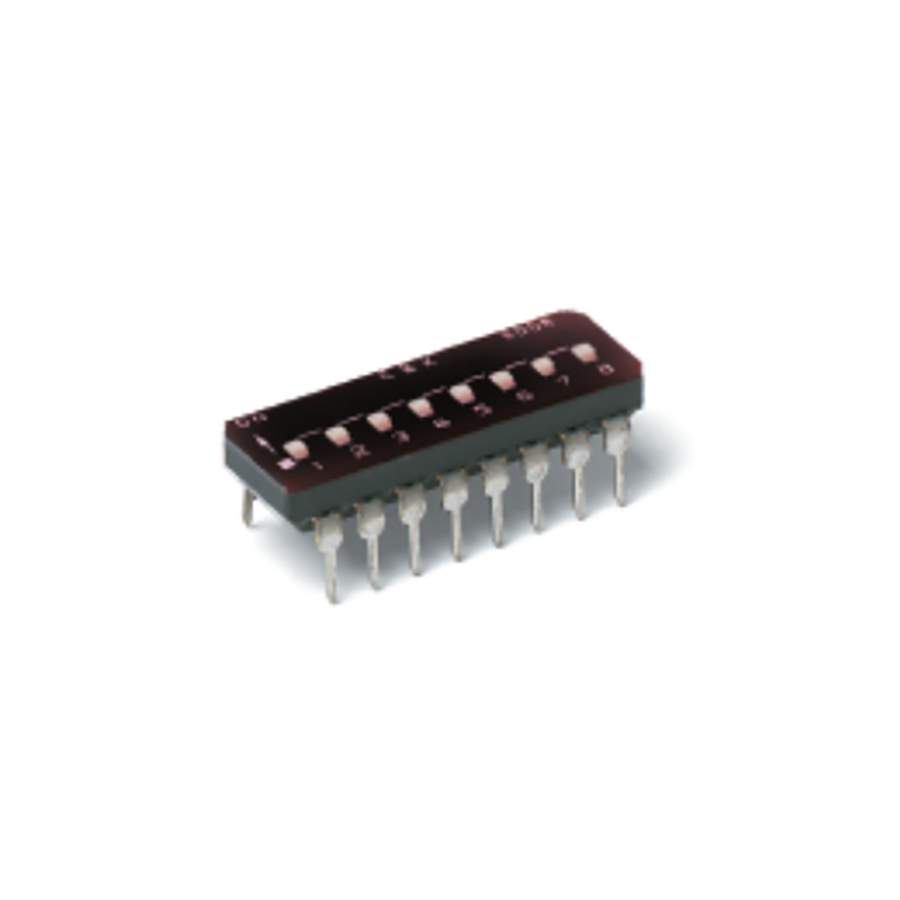

SD03H0SB
Manufacturer:
C&K Components
Mfr.Part #:
SD03H0SB
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:3 Current Rating:100 mA Slide (Standard)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 25 V |
| Height - Seated (Max) | 4.33 mm |
| Length | 9.0932 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 9.91 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 25 V |
| Orientation | Straight |
| Body Material | Polyphthalamide |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Number of Positions | 3 |
| Electrical Life | 2 kcycles |
| Actuator Material | Nylon |
| Mechanical Life | 2 kcycles |
| Actuator Type | Slide (Standard) |
| Washable | Yes |
Stock: 77
Distributors
pcbx
pcbxUnit Price$2.25274
Ext.Price$2.25274
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.25274 | $2.25274 |
| 10 | $1.96463 | $19.64630 |
| 25 | $1.68934 | $42.23350 |
| 50 | $1.63335 | $81.66750 |
| 100 | $1.57921 | $157.92100 |
| 300 | $1.52690 | $458.07000 |
| 500 | $1.47943 | $739.71500 |
| 1000 | $1.43343 | $1433.43000 |
| 3000 | $1.38886 | $4166.58000 |
| 5000 | $1.34566 | $6728.30000 |
